Box Truss 520x760mm Specifications Overview:
A Box Truss 520x760mm refers to a type of aluminum truss system commonly used in stage lighting, sound systems, and event structures. Here's a breakdown of its specifications:
Dimensions:
Width (Side): 520mm
Height (Top/Bottom): 760mm
Typically, the length is customizable (e.g., 1m, 2m, or modular sections).
Material:
Usually made from high-grade aluminum alloy (e.g., 6061-T6) for strength and lightweight properties.
Load Capacity:
Varies based on length and configuration but generally supports heavy lighting, sound, and rigging loads. 24m span CPL1700kg
Always check the manufacturer's load charts for exact ratings.
Connections:
Uses spigots, or clamp systems for assembly.
Compatible with other truss systems for modular setups.
Common Uses:
Concert & stage lighting rigs
Exhibition booths & event backdrops

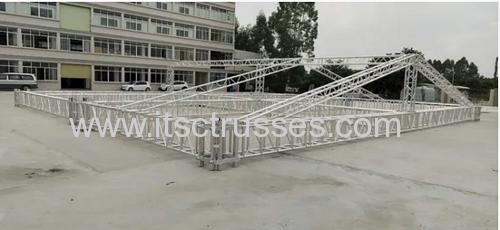

Roof structures for outdoor stages
Hanging frames for AV equipment
Advantages:
✔ High strength-to-weight ratio
✔ Corrosion-resistant (often anodized)
✔ Easy to assemble & transport
Would you like details on load capacity, accessories (bases, crank stands, etc.), or installation tips?
Brief introduction:

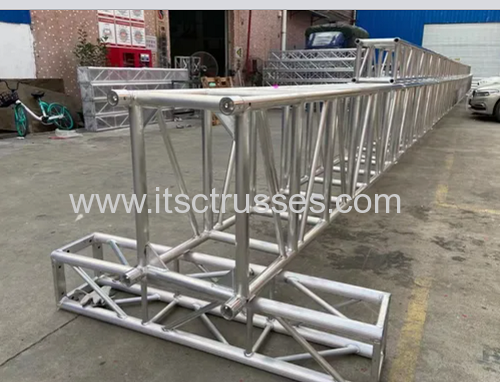

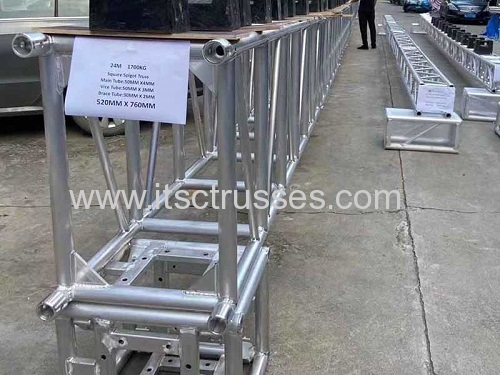

520x760mm Box Truss is constructed with 50x4mm main tube and deputy tube 50x2mm and diagonals is 25x2mm, and use the connical coupler system to connect. It has two-sided webbing and are capable of absorbing vertical loads only. ITSCtruss supplies a variety of accessories for ITSC5276 series that provides maximum flexibility, including standard or custom-made lengths, circles and arches and several types of corners. ITSCtrusses offer custom-made pieces on request.
Specification:
Type | 520x760mm box truss |
Alloy | 6061-T6, 6082-T6 |
Main tubes | 50x4mm |
Sub-main tube | 50x3mm |
Brace | 32x2mm |
Span | 24m |
Application | Roof beams, Cross trusses |
Loading capacity:
Span | 6m | 8m | 10m | 12m | 14m | 16m | 18m | 20m | 24m |
UDL(kg/m) | 324 | 240 | 189 | 156 | 131.6 | 113 | 95 | 85 | 55 |
Deflection(mm) | 22 | 38 | 29 | 24 | 31 | 37 | 33 | 61 | 79 |
CPL(KG) | 850 | 800 | 750 | 700 | 650 | 600 | 550 | 500 | 400 |
Deflection(mm) | 21 | 27 | 38 | 53 | 64 | 82 | 102 | 121 | 148 |
Application:
LED screen support- This heavy duty trusses is good to support the supper indoor LED screen for events. 18m in span with more than 1000kg capacity.
